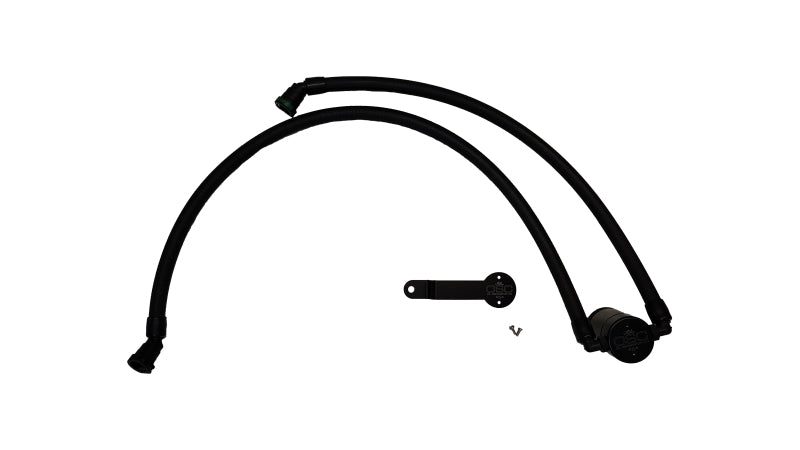

During the process of venting crankcase pressure back through your intake track, large amounts of oil, in the form of vapors can gather/accumulate in your intake tube, intake manifold runners and even dilute your gas, lowering its octane level. This happens on all engines and is even worse with forced inducted vehicles (supercharged and turbocharged) as crankcase pressures are increased. To combat this, we have developed an oil separator of our own design. Milled from solid billet aluminum this is a rock-solid piece. It has a knurled tank base for easy removal to drain the spent oil and an O-ring seal to prevent any leaks. Filtering consists of a fine mesh stainless steel screen that traps fine oil vapors and releases them once heavy enough to fall. They then pass through a 1/2" thick 1/16th" aluminum honeycomb filter where they grow every larger and then fall into the bottom. By the time the oil gets through the filter it's too heavy to be passed on into the intake. The tank holds 3 oz of fluid, while that may not sound like a lot, you shouldn’t see that much oil in your PCV system. Drain it every 2000-3000 miles and you will never come close to filling it.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2020	Chrysler	Pacifica	AWD Launch Edition
2018-2019	Chrysler	Pacifica	L
2017-2025	Chrysler	Pacifica	Limited
2017-2019	Chrysler	Pacifica	LX
2021-2025	Chrysler	Pacifica	Pinnacle
2025	Chrysler	Pacifica	Select
2017-2024	Chrysler	Pacifica	Touring
2017-2024	Chrysler	Pacifica	Touring L
2017-2020	Chrysler	Pacifica	Touring L Plus
2018-2019	Chrysler	Pacifica	Touring Plus
2020-2021	Chrysler	Voyager	L
2020-2025	Chrysler	Voyager	LX
2020-2021	Chrysler	Voyager	LXi
