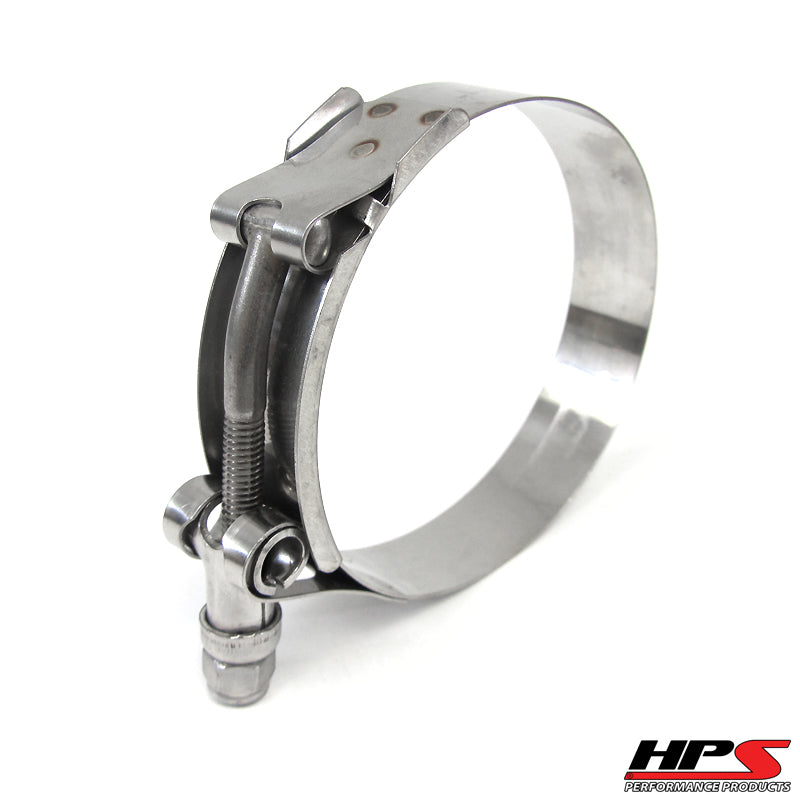

HPS 100% Stainless Steel T-Bolt Clamp with Floating Bridge 2.36"-2.68" (60mm-68mm) for 2-1/8" inch ID hose provides leak-proof connections in a wide variety of industrial, commercial, and military applications. HPS manufacture our clamps from 300 series stainless steel with rounded band edges to protect soft hose materials. HPS Stainless Steel T-Bolt Band Clamps provide high tensile strength, durability, and corrosion resistance. HPS Stainless Steel T Bolt Clamps are the perfect choice for medium and heavy-duty applications.HPS Stainless Steel T-Bolt Band Clamps are frequently installed on Coolant and Air-Intake Systems for Construction Vehicle, Truck, Aircraft, Marine and Bus Engines, Duct Systems, Baghouse Equipment, Irrigation Systems, Medical Equipment and Precleaners. Technical Specification: SAE #48. Effective Size Range: 2.36"-2.68" (60mm-68mm). 100% Stainless Steel Band, Bolt and Nut. Floating bridge and rolled edges to protect soft hoses. Superior welded construction. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps. 3/4" Band Width. Max. Torque Spec 75 in. lbs. Quantity: 1
- 100% Stainless Steel Band, Bolt and Nut. Superior welded construction
- SAE # 48. Meets or exceeds SAE Spec. J1508 for T-Bolt clamps
- Effective Diameter Range: 2.36"-2.68" (60mm-68mm)
- Floating bridge and rolled edges to protect soft hoses. 3/4" Band Width.
- Max. Torque Spec 75 in. lbs
Attributes:
-
GTIN: 00648044843308
-
Brand Name: HPS Performance
-
Effective Diameter Range: 60mm-68mm
-
Recommend to be used on HPS Hoses with these INSIDE Diameter: 2-1/8" (54mm)
Extended Information:
-
Country of Origin: China
-
Emissions : Released
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 4 x 4 x 4 inches
-
Weight: 0.32 lb
