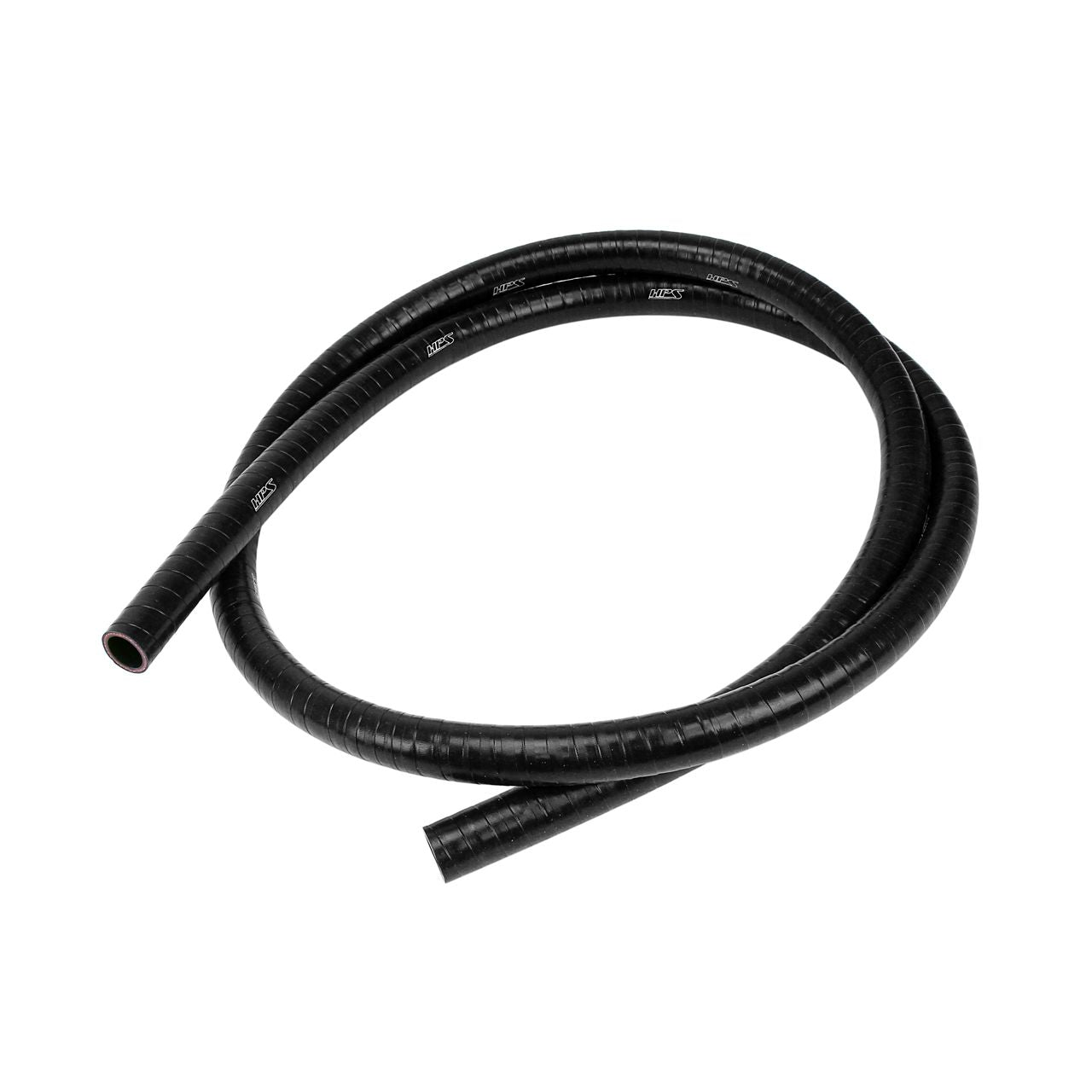

HPS 1" (25mm), FKM Lined Oil Resistant High Temperature Reinforced Silicone Hose, Sold per Foot, Black

$53.20 $56.00

FKM-100-BLK
HPS Performance

HPS 1" (25mm), FKM Lined Oil Resistant High Temperature Reinforced Silicone Hose, Sold per Foot, Black

$53.20 $56.00
0 watching this item.
Product description
The HPS Performance 1" FKM lined silicone hose is a specially developed hose with a fluoroelastomer liner in our world class silicone hoses. HPS Performance FKM lined silicone hoses with one inch inside diameter (25mm) can provide superior resistance to the harshness of gasoline, diesel, and automotive oils. The FKM lined hose can be used where the fluid flowing through the hose would traditionally degrade silicone hoses. With the FKM liner, we can minimize permeation, evaporation, and degradation of our silicone hose. HPS Performance FKM lined hose has excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels, aromatics, and many organic solvents and chemicals. FKM can handle the occasional flow of ethanol based fuels. Temperature Range:- 65 deg. F to + 350 deg. F (177 deg. C). Maximum Working Pressure: 34 psi. Hose Inside Diameter: 1.00" (25mm). Hose Outside Diameter: 1.30" (33mm). Length: Sold per Feet (Maximum 9 Feet). Wall Thickness: 4mm +/- 0.2mm. Bend Radius: 8". Recommended uses with HPS Performance FKM lined silicone hoses: Fuel Return, Fuel Ventilation, Crankcase Ventilation, Turbo Oil Return, Power Steering Return, Automatic Transmission Oil Cooler. REMARK: Do NOT use the hose as fuel line with working pressure over 34 psi. Do NOT use the hose to handle alcohol fuel continuously. Do NOT fully submerge the hose in fuel during use.
  • Excellent resistance to High Temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels, aromatics, and many organic solvents and chemicals
  • Recommended uses: Fuel Return, Fuel Ventilation, Crankcase Ventilation, Turbo Oil Return, Power Steering Return, Automatic Transmission Oil Cooler.
  • Do NOT use the hose as fuel line with working pressure over 34psi
  • Do NOT use the hose to handle alcohol fuel continuously
  • Do NOT fully submerge the hose in fuel during use.

Attributes:



  • GTIN: 00648044890937
  • Brand Name: HPS Performance
  • Inside Diameter: 25
  • Length: Sold per foot
  • Max Temp: 350F
  • Outside Diameter: 33
  • Reinforced Layer: 1-ply
  • Wall Thickness: 4mm

Extended Information:



  • Country of Origin: China
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:



  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 6 x 6 x 6 inches
  • Weight: 1 lb
