Edelbrock
EDE54901U-904
Edelbrock

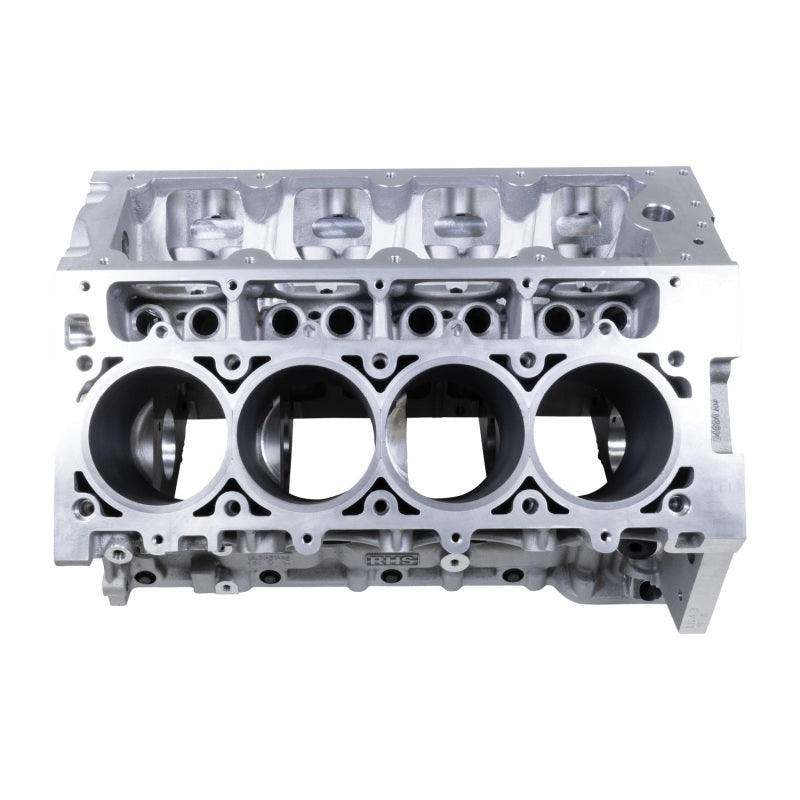

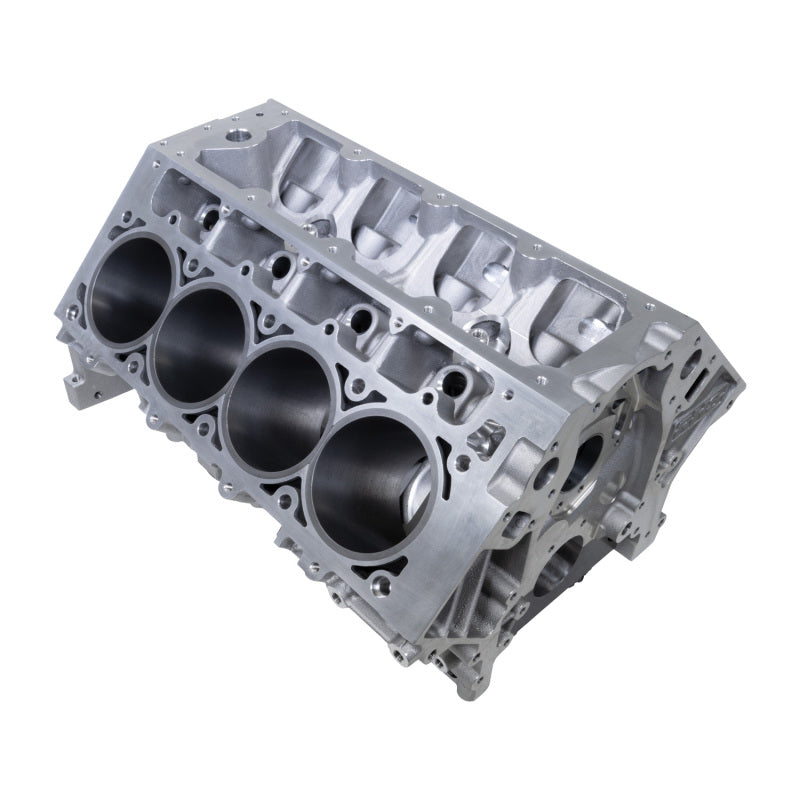

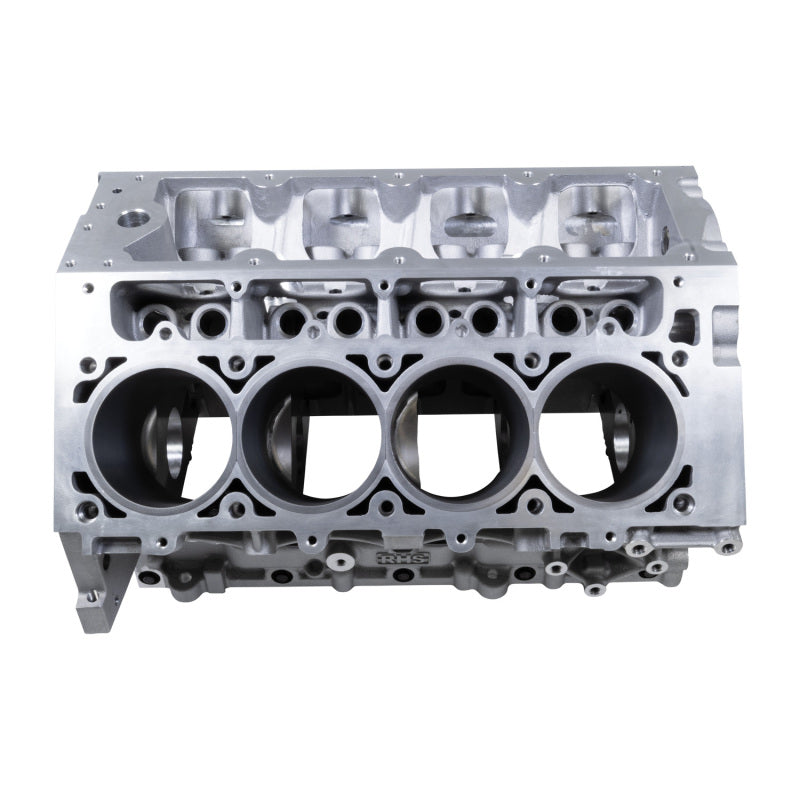

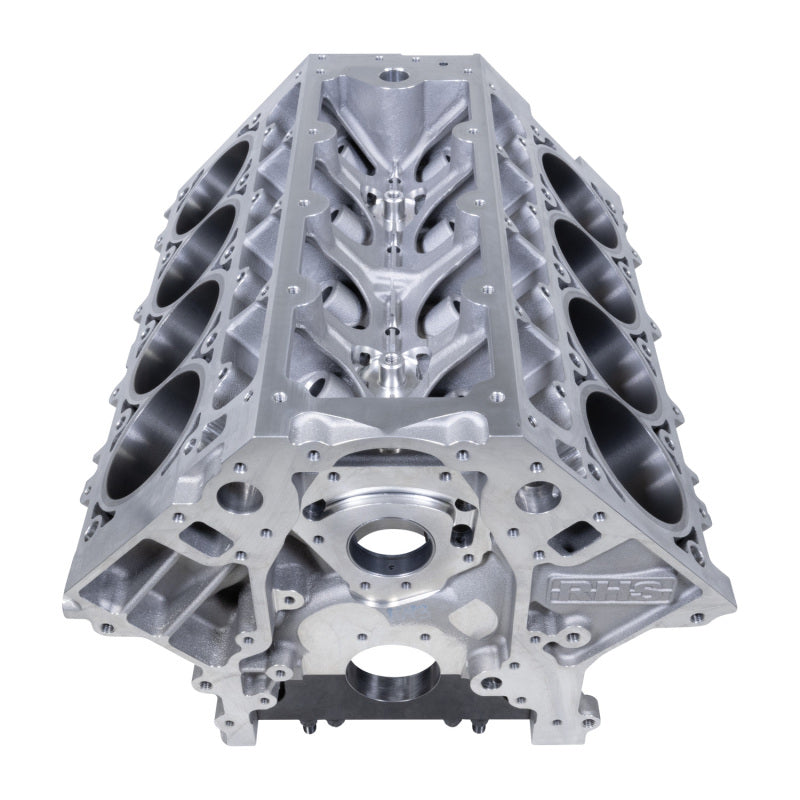

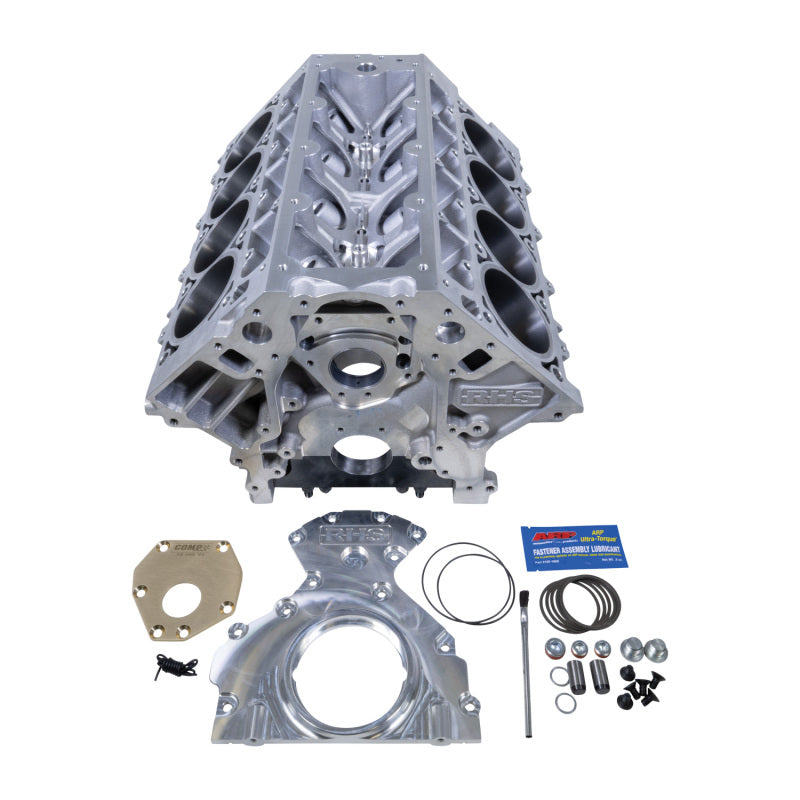

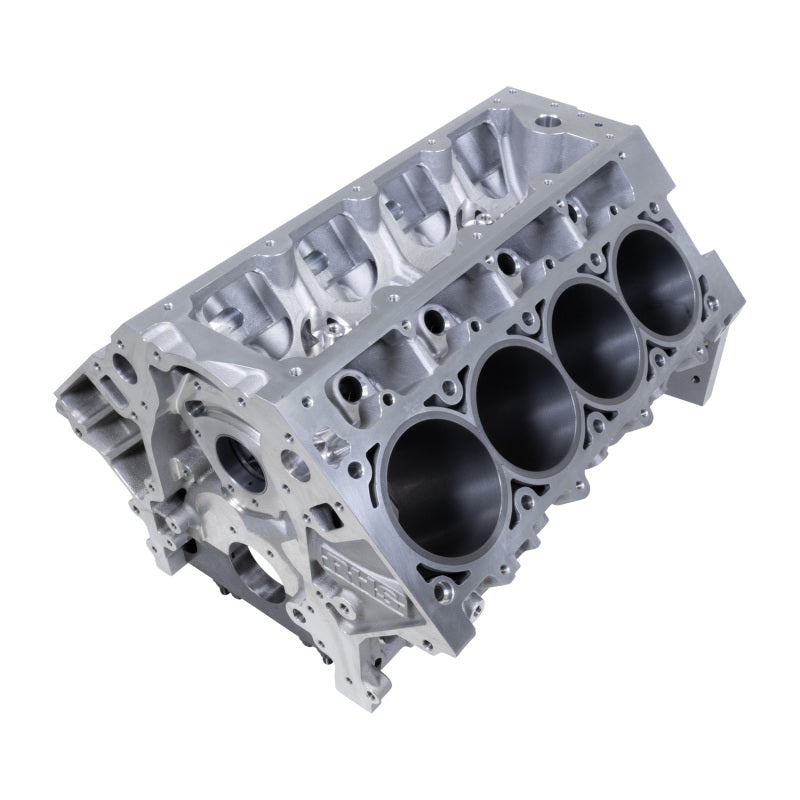

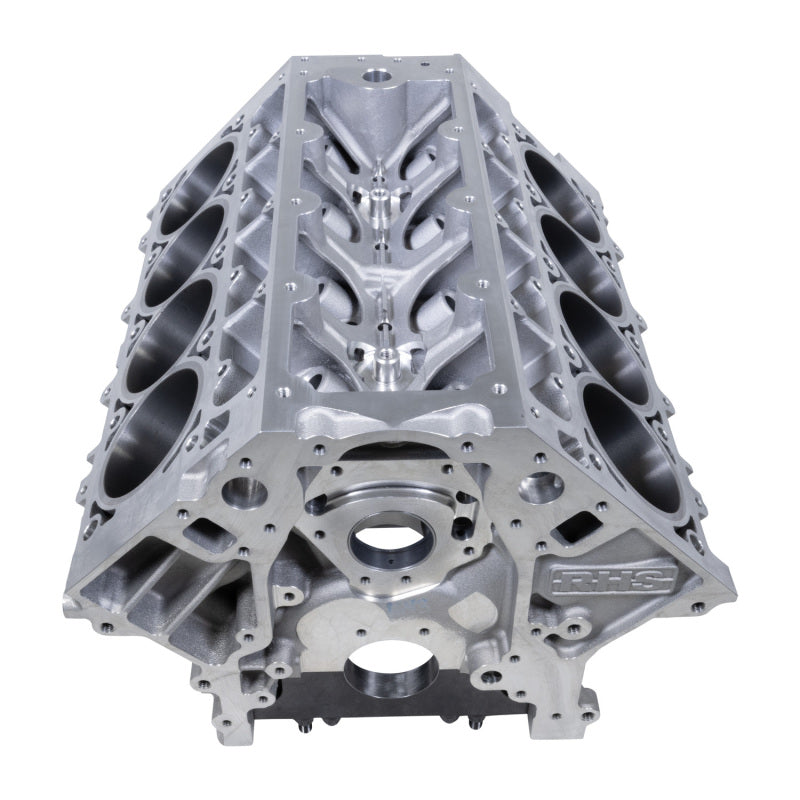

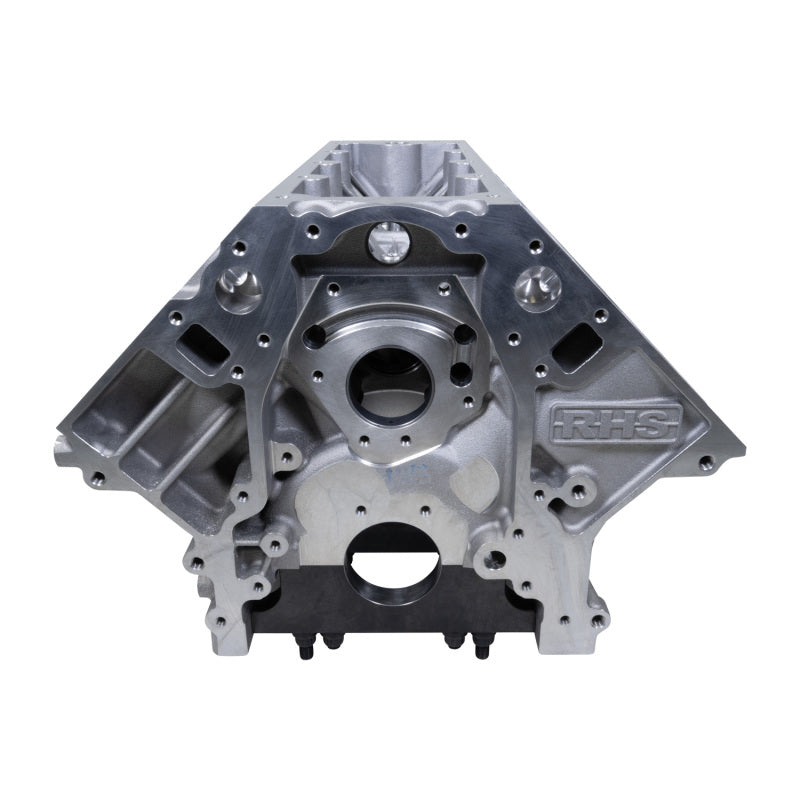

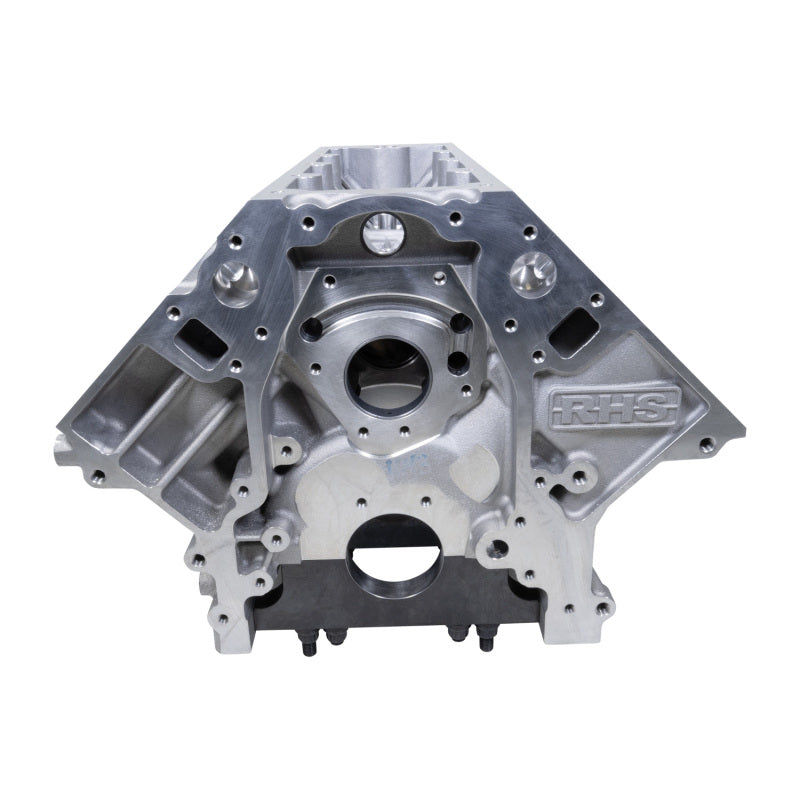

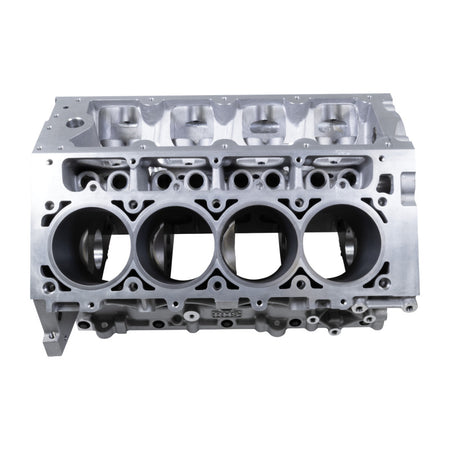

Edelbrock RHS LS Aluminum Race Block 9.750in Tall Deck 4.120in Bore 0.904in Lifter

$6,904.95

Description

Block Specifications: Designed from heavy-duty A357-T6 aluminum material, 4.125”-4.165” siamese cast bore walls w/ press-in spun cast iron liner, Available in standard (9.240”) & tall (9.750”) deck heights w/ beefy .750” deck thickness, Both standard deck (5.67”/5.87”- same as LS7) & tall deck (5.94”/6.38”) cylinder liner lengths available, “Long arm friendly” – Accommodations for up to 4.6” stroke w/ standard rod pin diameters (2.100”) & oversized 60mm camshaft, Main cap surface area maximized at mating surface & large fillets from cap to cross bolts for added strength, Designed for clearance – side oil galley moved outboard & engineered rod clearance come standard, Significantly increased windage passage area under bores & around caps over LS7/LSX engines, 6 head bolt design w/ full water jacket around the cylinders (based on LS7 design), Bay-to-bay breathing improved w/ increased side window area versus LSX & LS7, Extra-large windows in valley for access to inboard “6th” head bolt, Extra-long liners for standard (5.87”) & tall (6.38”) decks

This Part Fits:

Year Make Model Submodel
2001-2004 Avanti II Base
2006-2007 Cadillac CTS V
2010-2015 Chevrolet Camaro SS
2014-2015 Chevrolet Camaro Z/28
1998-2002 Chevrolet Camaro Z28
1998-2002 Chevrolet Camaro Z28 SS
2013 Chevrolet Corvette 427
2008 Chevrolet Corvette 427 Limited Edition Z06
2003 Chevrolet Corvette 50th Anniversary Edition
2003 Chevrolet Corvette 50th Anniversary Edition Pace Car
1997-2013 Chevrolet Corvette Base
2010-2013 Chevrolet Corvette Grand Sport
1998 Chevrolet Corvette Indianapolis 500 Pace Car
2006-2013 Chevrolet Corvette Z06
2011 Chevrolet Corvette Z06 Carbon
2014-2017 Chevrolet SS Base
2005-2006 Chevrolet SSR Base
2006-2009 Chevrolet Trailblazer SS
1998-2002 Pontiac Firebird Formula
1998-2002 Pontiac Firebird Trans Am
2009 Pontiac G8 GXP
2004-2006 Pontiac GTO Base
2008-2009 Saab 9-7x Aero
Block Specifications: Designed from heavy-duty A357-T6 aluminum material, 4.125”-4.165” siamese cast bore walls w/ press-in spun cast iron liner, Available in standard (9.240”) & tall (9.750”) deck heights w/ beefy .750” deck thickness, Both standard deck (5.67”/5.87”- same as LS7) & tall deck (5.94”/6.38”) cylinder liner lengths available, “Long arm friendly” – Accommodations for up to 4.6” stroke w/ standard rod pin diameters (2.100”) & oversized 60mm camshaft, Main cap surface area maximized at mating surface & large fillets from cap to cross bolts for added strength, Designed for clearance – side oil galley moved outboard & engineered rod clearance come standard, Significantly increased windage passage area under bores & around caps over LS7/LSX engines, 6 head bolt design w/ full water jacket around the cylinders (based on LS7 design), Bay-to-bay breathing improved w/ increased side window area versus LSX & LS7, Extra-large windows in valley for access to inboard “6th” head bolt, Extra-long liners for standard (5.87”) & tall (6.38”) decks

This Part Fits:

Year Make Model Submodel
2001-2004 Avanti II Base
2006-2007 Cadillac CTS V
2010-2015 Chevrolet Camaro SS
2014-2015 Chevrolet Camaro Z/28
1998-2002 Chevrolet Camaro Z28
1998-2002 Chevrolet Camaro Z28 SS
2013 Chevrolet Corvette 427
2008 Chevrolet Corvette 427 Limited Edition Z06
2003 Chevrolet Corvette 50th Anniversary Edition
2003 Chevrolet Corvette 50th Anniversary Edition Pace Car
1997-2013 Chevrolet Corvette Base
2010-2013 Chevrolet Corvette Grand Sport
1998 Chevrolet Corvette Indianapolis 500 Pace Car
2006-2013 Chevrolet Corvette Z06
2011 Chevrolet Corvette Z06 Carbon
2014-2017 Chevrolet SS Base
2005-2006 Chevrolet SSR Base
2006-2009 Chevrolet Trailblazer SS
1998-2002 Pontiac Firebird Formula
1998-2002 Pontiac Firebird Trans Am
2009 Pontiac G8 GXP
2004-2006 Pontiac GTO Base
2008-2009 Saab 9-7x Aero
