Edelbrock
EDE22752
Edelbrock

Edelbrock Max-Fire Distributor Chevrolet 348/409

$487.95

Description

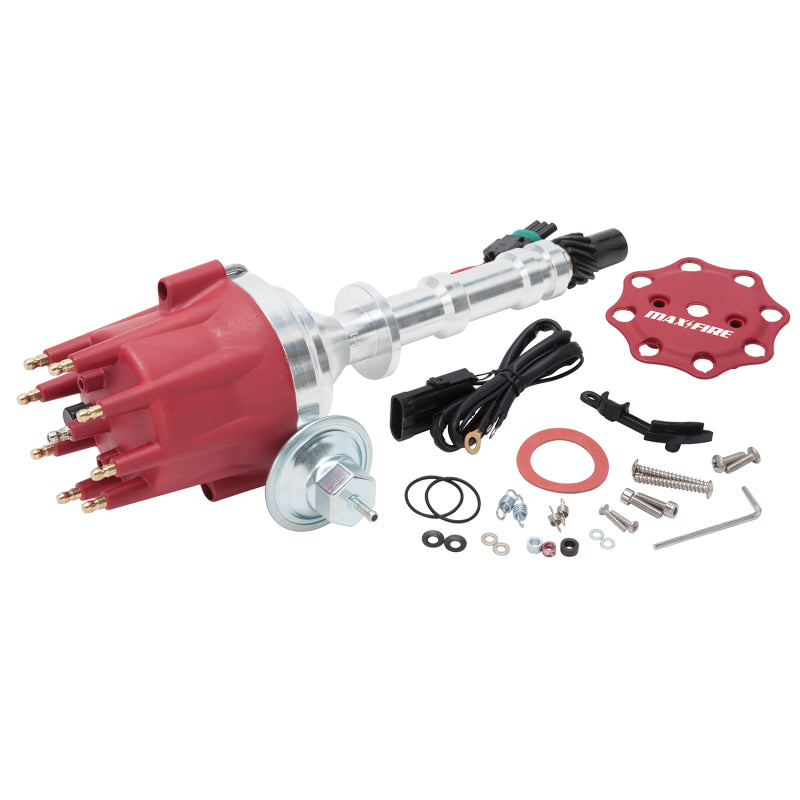

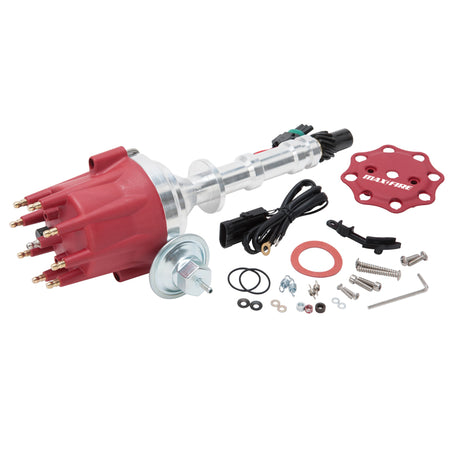

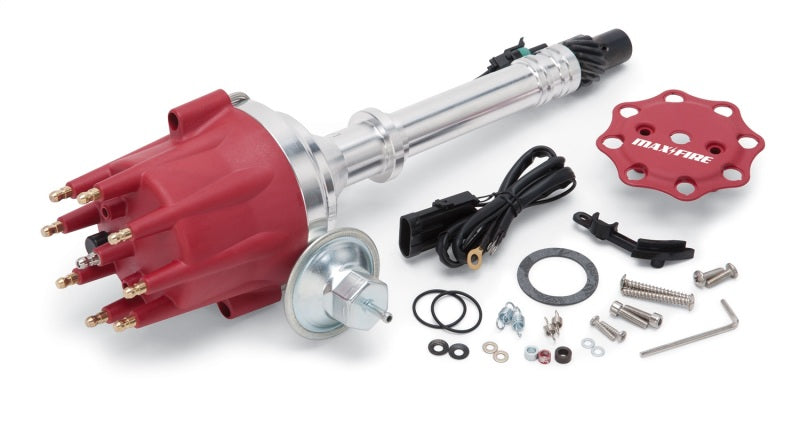

Edelbrock part #22752 Max-Fire distributor for Chevy 348/409 engines is ready to run right out-of-the-box and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit. FEATURES AND BENEFITS: - CNC machined from 6061-T6 aluminum with O-ring grooves for use in a fully machined engine block - Cap and rotor are molded in high quality 30% glass filled polyester for durability and carbon tracking resistance - Features brass contacts and a stainless steel rotor spring for maximum conductivity - Hardened iron drive gear ensures long service life - Fully adjustable mechanical and vacuum advance for increased mileage potential
Installation Instructions


This Part Fits:

Year Make Model Submodel
1958-1965 Chevrolet Bel Air Base
1958-1965 Chevrolet Biscayne Base
1960 Chevrolet Biscayne Fleetmaster
1958-1961 Chevrolet Brookwood Base
1960-1961 Chevrolet C10 Pickup Base
1960-1961 Chevrolet C20 Pickup Base
1960-1961 Chevrolet C30 Pickup Base
1958 Chevrolet Del Ray Base
1959-1960 Chevrolet El Camino Base
1958-1965 Chevrolet Impala Base
1964-1965 Chevrolet Impala SS
1960-1961 Chevrolet K10 Pickup Base
1960-1961 Chevrolet K20 Pickup Base
1959-1961 Chevrolet Kingswood Base
1958-1961 Chevrolet Nomad Base
1960-1961 Chevrolet P20 Series Base
1960-1965 Chevrolet P30 Series Base
1959-1961 Chevrolet Parkwood Base
1958 Chevrolet Sedan Delivery Base
1960-1961 Chevrolet Suburban Base
1958,1960 Chevrolet Truck Base
1958 Chevrolet Yeoman Base
Edelbrock part #22752 Max-Fire distributor for Chevy 348/409 engines is ready to run right out-of-the-box and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit. FEATURES AND BENEFITS: - CNC machined from 6061-T6 aluminum with O-ring grooves for use in a fully machined engine block - Cap and rotor are molded in high quality 30% glass filled polyester for durability and carbon tracking resistance - Features brass contacts and a stainless steel rotor spring for maximum conductivity - Hardened iron drive gear ensures long service life - Fully adjustable mechanical and vacuum advance for increased mileage potential
Installation Instructions


This Part Fits:

Year Make Model Submodel
1958-1965 Chevrolet Bel Air Base
1958-1965 Chevrolet Biscayne Base
1960 Chevrolet Biscayne Fleetmaster
1958-1961 Chevrolet Brookwood Base
1960-1961 Chevrolet C10 Pickup Base
1960-1961 Chevrolet C20 Pickup Base
1960-1961 Chevrolet C30 Pickup Base
1958 Chevrolet Del Ray Base
1959-1960 Chevrolet El Camino Base
1958-1965 Chevrolet Impala Base
1964-1965 Chevrolet Impala SS
1960-1961 Chevrolet K10 Pickup Base
1960-1961 Chevrolet K20 Pickup Base
1959-1961 Chevrolet Kingswood Base
1958-1961 Chevrolet Nomad Base
1960-1961 Chevrolet P20 Series Base
1960-1965 Chevrolet P30 Series Base
1959-1961 Chevrolet Parkwood Base
1958 Chevrolet Sedan Delivery Base
1960-1961 Chevrolet Suburban Base
1958,1960 Chevrolet Truck Base
1958 Chevrolet Yeoman Base
