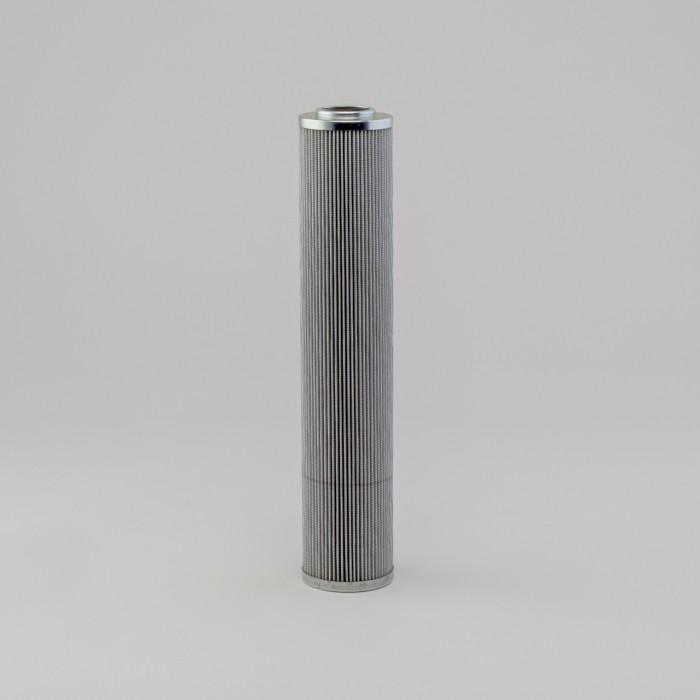

Donaldson P571379 Hydraulic Filter Cartridge
Description
The Donaldson P571379 Hydraulic Filter Cartridge is designed for high-pressure hydraulic systems, offering superior hydraulic filtration and exceptional reliability. The cartridge's construction ensures optimal protection against contaminants, making it perfect for rigorous commercial and heavy-duty applications.
Technical Specifications
- Seal Material: Viton for long-lasting performance
- Outer Diameter: 3.07 inches (78 mm)
- Inner Diameter: 1.59 inches (40.3 mm)
- Overall Length: 15.74 inches (399.8 mm)
- Efficiency Rating: Beta 1000 at 12 microns for advanced depth filtration
- Collapse Burst Pressure: 300 psi (20.7 bar)
Key Benefits
- Advanced Filtration: Employs state-of-the-art depth filtration technology to capture fine particles
- Enhanced Dirt Retention: Lowers system contaminants and helps reduce maintenance downtime
- Durable Engineering: Extends the life of critical hydraulic components with robust construction
- Optimized Performance: Crafted for high-pressure environments and synthetic media use for superior filtration
Application & Performance
Ideal for high-pressure hydraulic systems, this cartridge delivers smooth fluid flow and reliable performance even under extreme conditions. Its synthetic media properties further improve filtration efficiency, making it a trusted option for both professional fleets and automotive enthusiasts.
Items typically ship within one business day as brand-new genuine parts. Browse our Hydraulic Filters and Donaldson collections for additional high-quality hydraulic solutions.
Attributes
| Manufacturer Brand Name | DT High-Performance |
| Style | Cartridge |
Other Information
| UPC Code | 742330955178 |
Packaged Dimensions
| Packaged Length | 3.70 in |
| Packaged Width | 3.7 in |
| Packaged Height | 17.5 in |
| Packaged Weight | 2.01 lb (0.913 kg) |
| Packaged Volume | 0.14 ft3 (0.004 m3) |
