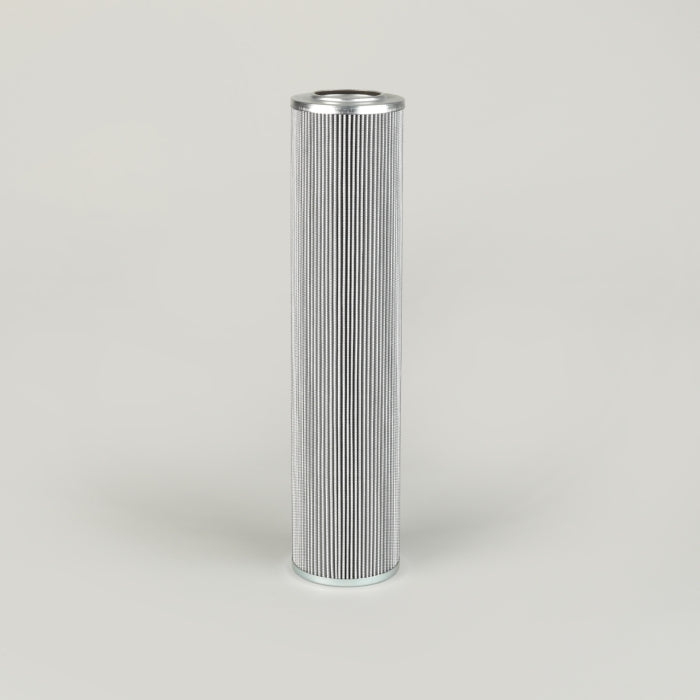

Donaldson P566502 Hydraulic Filter
Description
The Donaldson P566502 Hydraulic Filter provides advanced depth filtration to offer superior protection for your hydraulic system. Featuring innovative synthetic media combined with a sturdy Viton seal, this cartridge DT filter is designed to extend filter life while keeping your critical hydraulic components well protected.
At Everything Truck Parts, we dedicate ourselves to reliability, which is why your order typically ships within 1 business day. Enjoy the assurance that comes with receiving brand-new, genuine parts along with the option to order any quantity.
• Fast shipping
• Genuine parts
• Versatile order options
Product Overview
Engineered for peak performance, the Donaldson P566502 delivers advanced filtration along with enhanced chemical and wear resistance. Its design not only cuts down on maintenance costs and system downtime but also endures the high-pressure demands of hydraulic systems.
Technical Specifications
• Outer Diameter: 3.79 inches (96.2 mm)
• Inner Diameter: 2.11 inches (53.7 mm)
• Overall Length: 16.85 inches (428 mm)
• Efficiency Beta Rating: 1000 at 12 microns
• Collapse Burst Pressure: 149 psi (10.3 bar)
• Equipped with a high-performance Viton seal
These detailed specifications, combined with Donaldson Synteq™ media, improve overall system protection and extend filter life.
Key Benefits
• Advanced depth filtration that enhances dirt retention
• Lower maintenance costs due to reduced downtime
• Designed for high-pressure hydraulic systems
• Extended intervals between filter changes thanks to high dirt holding capacity
• Excellent chemical and wear resistance
Cross References
• DONALDSON DT89001614UM
• FAIREY
• ARLON R890H1612H
Learn more about our hydraulic filter options in the Hydraulic Filters collection or browse additional Donaldson products in the Donaldson collection.
Attributes
| Manufacturer Brand Name | DT High-Performance |
| Outer Diameter | 3.79 in |
| Efficiency Test Std | 12 micron |
| Style | Cartridge |
Other Information
| UPC Code | 742330178003 |
Packaged Dimensions
| Packaged Length | 4.30 in |
| Packaged Width | 4.3 in |
| Packaged Height | 19.5 in |
| Packaged Weight | 2.86 lb (1.298 kg) |
| Packaged Volume | 0.21 ft3 (0.006 m3) |
