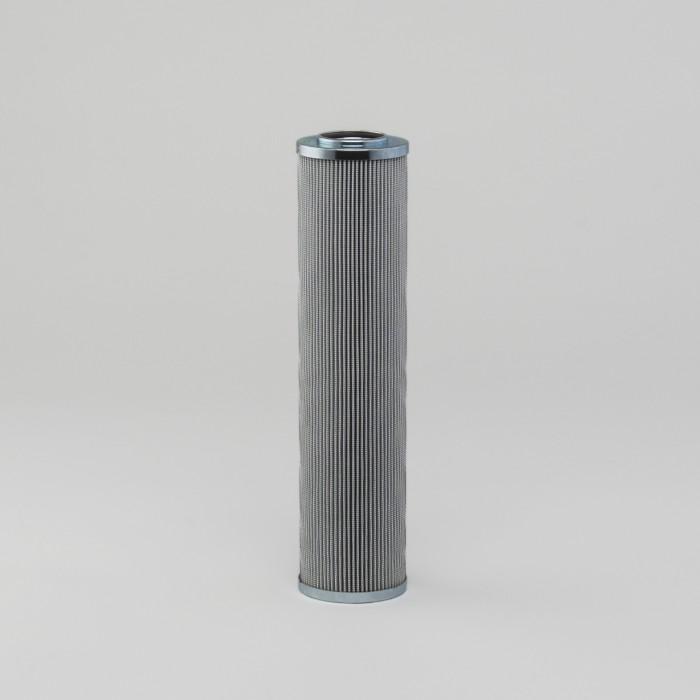

Donaldson P566217 HYDRAULIC FILTER, CARTRIDGE DT
Description
The Donaldson P566217 Hydraulic Filter Cartridge is engineered to meet the demanding requirements of high-pressure hydraulic systems. With advanced filtration technology and robust construction, you can trust the Donaldson P566217 hydraulic filter to withstand challenging work conditions. Experience quality and performance when you purchase a Donaldson hydraulic filter cartridge online.
Key Features
- • Synthetic Media Type – Ensures efficient, long-lasting filtration while resisting chemical degradation.
- • Viton Seal – Offers superior leak prevention with reliable sealing.
- • High Filtration Efficiency – Captures particles as small as 12 microns, reducing downtime.
- • Compact Dimensions – An overall length of 12.91 inches that fits seamlessly into various systems.
- • Extended Filter Life – Lowers maintenance costs and protects your equipment during high-pressure operations.
Technical Specifications
- • Filtration Efficiency: 12 microns
- • Beta Rating: 1000
- • Overall Length: 12.91 inches (327.8 mm)
- • Outer Diameter: 3.1 inches (78.84 mm)
- • Inner Diameter: 1.72 inches (43.8 mm)
- • Gasket ID: 1.62 inches (41.2 mm)
- • Collapse Burst Rating: 290 psi (20 bar)
- • Country of Origin: United States
Compatibility
Ideal for hydraulic systems such as:
- • W061
- • FPK04
- • HPK04
This filter is perfect for anyone seeking a high-performance solution from the Hydraulic Filters collection.
Usage & Safety
- • Follow recommended installation procedures for optimal performance.
- • Handle with care to avoid contact with hydraulic fluids.
- • Schedule regular maintenance to extend filter life and maximize equipment uptime.
Order now and enjoy fast shipping along with our commitment to genuine, high-quality parts every time. Check out our Donaldson collection for more advanced solutions.
Attributes
| Manufacturer Brand Name | DT High-Performance |
| Outer Diameter | 3.1 in |
| Efficiency Test Std | 12 micron |
| Style | Cartridge |
Other Information
| UPC Code | 742330174951 |
Packaged Dimensions
| Packaged Length | 3.50 in |
| Packaged Width | 3.5 in |
| Packaged Height | 14.7 in |
| Packaged Weight | 1.64 lb (0.745 kg) |
| Packaged Volume | 0.10 ft3 (0.003 m3) |
