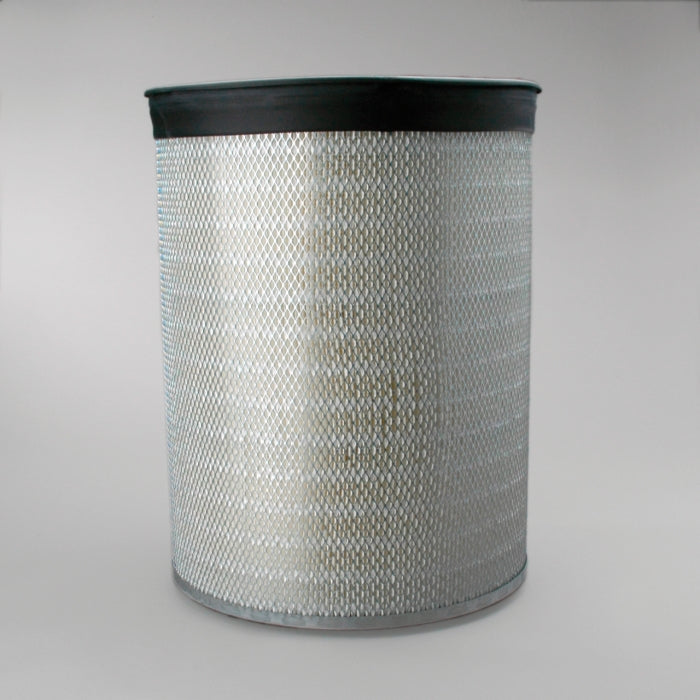

Donaldson P181038 Air Filter
Description
Discover the exceptional Donaldson P181038 air filter engineered for heavy-duty applications, delivering an impressive 99.9% efficiency while remaining compatible with original equipment. Built for durability, this filter features premium cellulose media and uniform pleat spacing for consistent performance and an extended service life.
Technical Specifications
• Length: Approximately 585–598 mm
• Overall Diameter: ≈446.6 mm
• Internal Diameter: ≈281 mm
• Bolt Hole Diameter: ≈22.73–22.9 mm
• Media Type: Cellulose
• Efficiency Test Standard: ISO 5011
• Product Classification: Primary Round
• Enhanced Design: Includes a robust gasket and Pleatloc™ for uniform performance
Features & Benefits
• High dust-holding capacity for extended filter life
• Superior thermal stability under demanding conditions
• Corrosion-resistant support liners that help sustain efficiency
• Backed by quality assurance and OEM warranty where applicable
Cross References
• AC: A554C
• ARM: 115069, 181038
• AIR SUPPLY: COMP 121758
• AMERICAN PARTS: 1147, 93440
• BALDWIN: PA2363
• BIG A: 1147, 93440
• CANADIAN FILTER: CFM528
• CARQUEST: 87440
• CATERPILLAR: 3I0791, 9Y6835
• CHAMP/CHAMPION LABORATORIES: AF5069, LAF5069
• CONTINENTAL: PCA573
• COOPERS: AEM2012
• CUMMINS: 3010306, 3013214, 3015349
• …and many more
Shipping & Company Commitment
• Ships within 1 business day
• Brand-new, genuine parts every time
• No minimum order requirements
For more Donaldson products, visit our Donaldson collection. Experience the perfect blend of performance, reliability, and quality with the Donaldson P181038 air filter.
Attributes
| Manufacturer Brand Name | Donaldson |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
Other Information
| UPC Code | 742330025390 |
Packaged Dimensions
| Packaged Length | 19.50 in |
| Packaged Width | 19.9 in |
| Packaged Height | 24.8 in |
| Packaged Weight | 20.22 lb (9.180 kg) |
| Packaged Volume | 5.57 ft3 (0.156 m3) |
