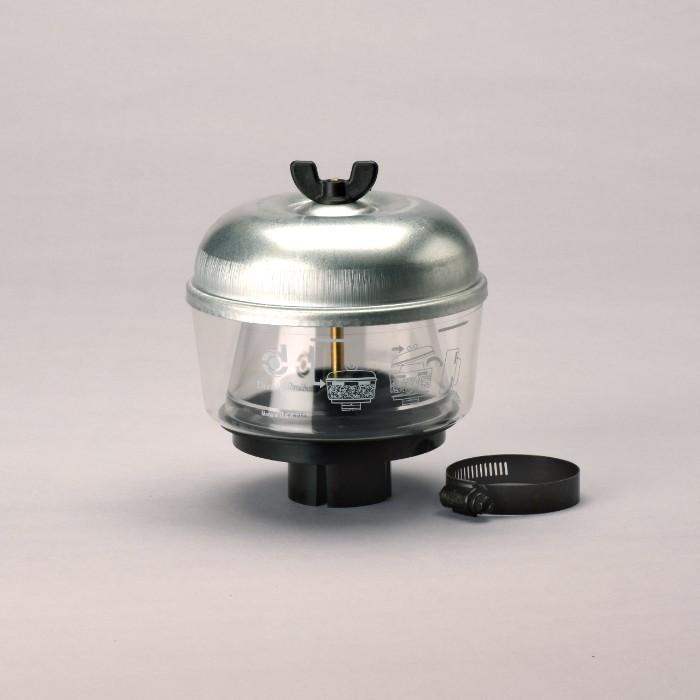

Donaldson H002042 PRE-CLEANER, FULL VIEW
Description
Experience enhanced engine performance with the Donaldson H002042 Pre-Cleaner – Full View. Designed to utilize centrifugal force, this pre-cleaner removes up to 75% of incoming dust, extending your primary filter's lifespan while increasing your engine's air intake efficiency. Perfect for both everyday drivers and performance enthusiasts, this OEM-grade component delivers dependable protection and hassle-free maintenance for your vehicle.
Specifications
• Height: Approximately 120–121 mm
• Body Diameter: Around 142 mm
• Outlet ID: Approximately 44–44.5 mm
• Efficiency: 75% removal as per ISO 5011/SAE J726 standards
• Rated Flow: Approximately 2.3 m³/min (81 cfm)
• Pressure Restrictions: Lower at 25.4 mm H₂O; Upper between 76–76.2 mm H₂O
Features & Benefits
• Extends filter life by significantly reducing dust accumulation
• Simplifies maintenance with a full-view bowl for easy visual inspections
• Features secure one-bolt cover retention for quick and straightforward disassembly
• Built to OEM-grade standards with an innovative design for lasting reliability
Installation Tip
For optimal performance, check that the pre-cleaner is properly aligned and securely attached during installation to ensure effective centrifugal separation and reduced engine strain.
Discover more Donaldson quality products in our Donaldson Collection and boost your vehicle’s performance with confidence.
Attributes
| Manufacturer Brand Name | Donaldson |
| Efficiency Test Std | ISO 5011, SAE J726 |
Other Information
| UPC Code | 742330003398 |
Packaged Dimensions
| Packaged Length | 0.51 in |
| Packaged Weight | 1.07 lb (0.486 kg) |
| Packaged Volume | 0.15 ft3 (0.004 m3) |
Experience enhanced engine performance with the Donaldson H002042 Pre-Cleaner – Full View. Designed to utilize centrifugal force, this pre-cleaner removes up to 75% of incoming dust, extending your primary filter's lifespan while increasing your engine's air intake efficiency. Perfect for both everyday drivers and performance enthusiasts, this OEM-grade component delivers dependable protection and hassle-free maintenance for your vehicle.
Specifications
• Height: Approximately 120–121 mm
• Body Diameter: Around 142 mm
• Outlet ID: Approximately 44–44.5 mm
• Efficiency: 75% removal as per ISO 5011/SAE J726 standards
• Rated Flow: Approximately 2.3 m³/min (81 cfm)
• Pressure Restrictions: Lower at 25.4 mm H₂O; Upper between 76–76.2 mm H₂O
Features & Benefits
• Extends filter life by significantly reducing dust accumulation
• Simplifies maintenance with a full-view bowl for easy visual inspections
• Features secure one-bolt cover retention for quick and straightforward disassembly
• Built to OEM-grade standards with an innovative design for lasting reliability
Installation Tip
For optimal performance, check that the pre-cleaner is properly aligned and securely attached during installation to ensure effective centrifugal separation and reduced engine strain.
Discover more Donaldson quality products in our Donaldson Collection and boost your vehicle’s performance with confidence.
