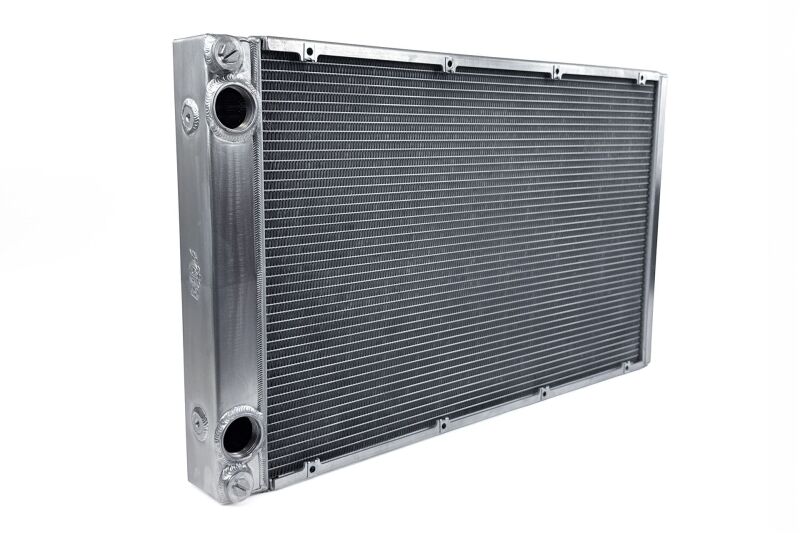

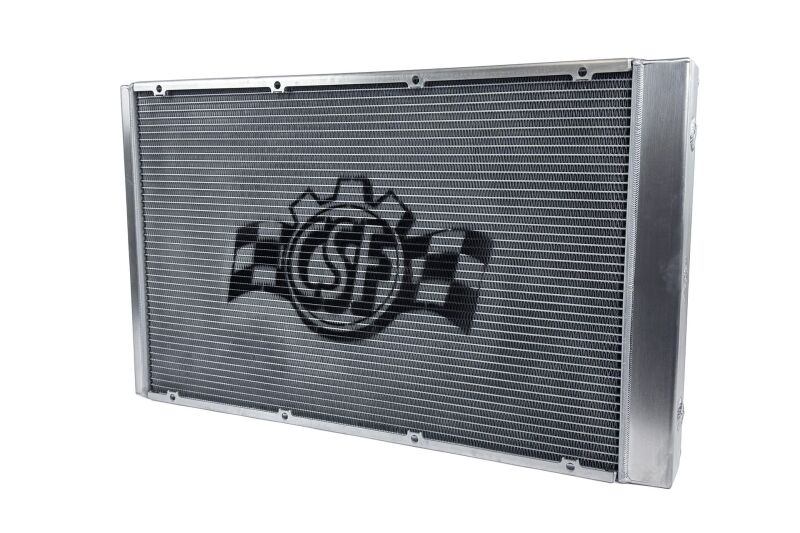

CSF Motorsport Dual-Pass Competition Radiator
CSF Motorsport Dual-Pass Competition Radiator
CSF Motorsport Dual-Pass Competition Radiator
CSF Motorsport Dual-Pass Competition Radiator
CSF Motorsport Dual-Pass Competition Radiator
CSF Motorsport Dual-Pass Competition Radiator
CSF
CSF8378
CSF

CSF Motorsport Dual-Pass Competition Radiator

$1,395.00

Description

The CSF engineering team has spent over a year working with companies like Drift HQ as well as Pro/Am Drifters to develop and refine the ultimate Drift Radiator. This new Universal Radiator can be used in any racing or motorsport application, but it was purpose built for Drift Vehicles. The size makes it ideal for rear mounted setups and offers an optional shroud with fans capable of keeping the hottest cars cool when sideways. This is the largest Drift Radiator Module on the market and delivers the cooling performance you need to compete.

  • 2 -12AN (1 1/16"-12) ORB ports for sensor mounting, overflow or expansion tank mounting, and/or bleeding - Fittings NOT Included - only plugs

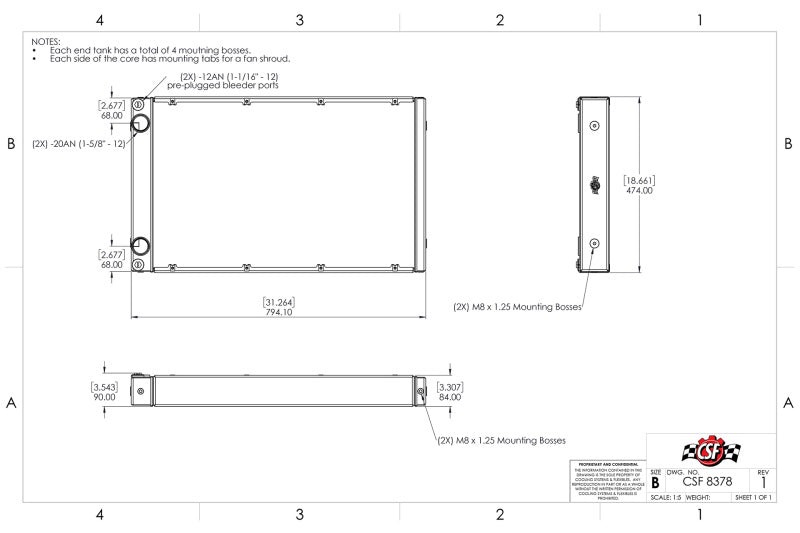

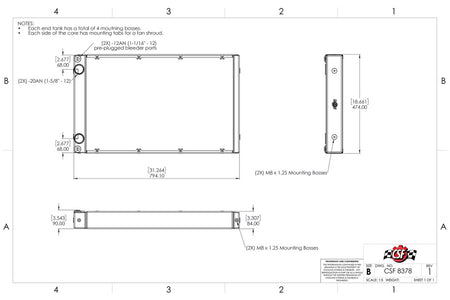

  • Overall Dimensions Radiator Only (WxHxD): 794.10 x 470.00 x 90.00 mm (31.264 x 18.661 x 3.543 inches)
  • 45 Rows of 8mm Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
  • 2-Row - 68mm Ultra-High-Performance Dual Pass Core: 705 mm L x 448 mm H (27.75 x 17.5 inches)
  • Inlet/Outlet: -20AN (1 5/8" - 12) Threaded female ORB bosses - Fittings NOT Included
  • 8 total M8x1.25 Mounting Bosses (4 per tank) for mounting versatility
  • 44 Rows of Cooling Tubes with CSF's Exclusive B-Tube Technology
  • 100% All Aluminum TIG-Welded Construction
  • Individually Leak and Pressure Tested
  • Hand Brushed Satin Finish
  • 2-Year Limited Warranty

The CSF engineering team has spent over a year working with companies like Drift HQ as well as Pro/Am Drifters to develop and refine the ultimate Drift Radiator. This new Universal Radiator can be used in any racing or motorsport application, but it was purpose built for Drift Vehicles. The size makes it ideal for rear mounted setups and offers an optional shroud with fans capable of keeping the hottest cars cool when sideways. This is the largest Drift Radiator Module on the market and delivers the cooling performance you need to compete.

  • 2 -12AN (1 1/16"-12) ORB ports for sensor mounting, overflow or expansion tank mounting, and/or bleeding - Fittings NOT Included - only plugs
  • Overall Dimensions Radiator Only (WxHxD): 794.10 x 470.00 x 90.00 mm (31.264 x 18.661 x 3.543 inches)
  • 45 Rows of 8mm Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
  • 2-Row - 68mm Ultra-High-Performance Dual Pass Core: 705 mm L x 448 mm H (27.75 x 17.5 inches)
  • Inlet/Outlet: -20AN (1 5/8" - 12) Threaded female ORB bosses - Fittings NOT Included
  • 8 total M8x1.25 Mounting Bosses (4 per tank) for mounting versatility
  • 44 Rows of Cooling Tubes with CSF's Exclusive B-Tube Technology
  • 100% All Aluminum TIG-Welded Construction
  • Individually Leak and Pressure Tested
  • Hand Brushed Satin Finish
  • 2-Year Limited Warranty
