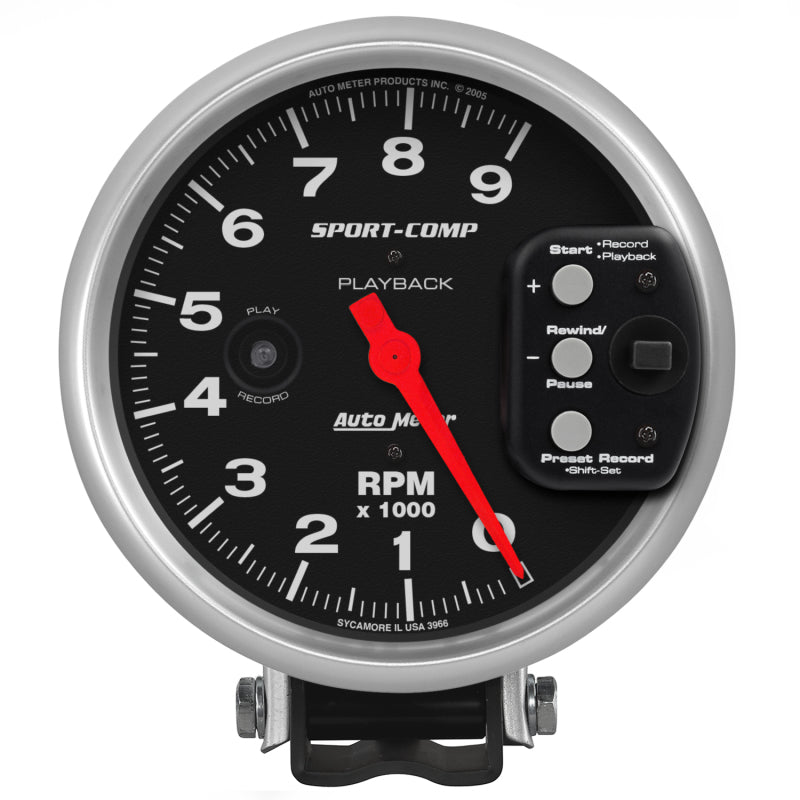

Autometer Sport-Comp 5 inch 9000 RPM Pedestal Mount Tachometer w/ RPM Playback
Description
Since 1957, AutoMeter has set the standard in performance, accuracy and durability with their legendary Tachometers. Built for a lifetime of service under the harshest conditions, this is the no compromise tach for no compromise builds. Record up to 80 seconds of engine RPM data and playback at slow motion speeds to analyze vehicle and driver performance following a run. Identify key performance data such as burnout, launch RPM, tire spin, gear changes and engine speed through the traps to fine tune your setup and trip the win lights.
Installation Instructions- Remote recording trigger lead may be connected to driver accessible push button, trans-brake, line-lock, clutch switch, or foot brake light switch for maximum versatility and ease of use for the driver.
- Optional Launch Lite feature utilizes a Shift Lite connected to the tachometer to help the driver properly stage the vehicle and maintain desired RPM prior to launch in classes.
- AutoMeter’s race proven air-core electric tachometers provide quick and accurate readings with a needle so responsive it can go from 0 - full scale in 333 milliseconds
- Optional shift light connector allows for the addition of a variety of options from AutoMeter to improve driver visibility and reaction to desired gear change points.
- Built in short-shift protection prevents missed shifts due to early shifts by monitoring RPM drop and intelligently determining when a gear change has occurred.
- Compatible with 0.5 - 6 pulse ignition signals (1-12 cylinder engines) with points, electronic, and most 12V high-performance racing ignitions.
- Where launch control electronics are prohibited by utilizing the light to indicate whether you are at, above, or below your desired launch RPM.
- Green LED recording status lamp provides quick visual indication of tachometer mode to the driver to ensure you never miss a recording.
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Program up to 4 gear-specific shift light points to maximize your vehicle's performance.
- Playback a complete run of engine RPM data at 1:1 or 1:3 speed
