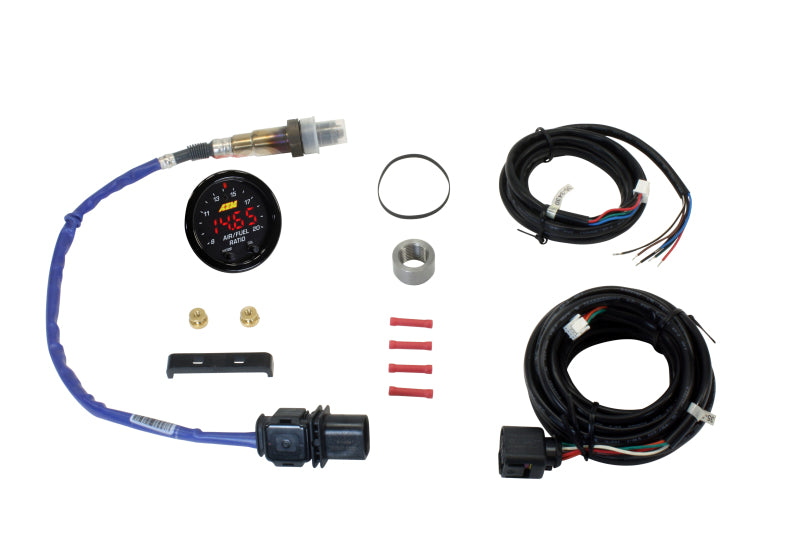

AEM X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge

$316.32
$337.95 Sale $316.32

Description

Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that can help ensure your vehicle is optimally tuned.

Installation Instructions
  • X-Series Wideband UEGO AFR Controllers Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
  • 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
  • Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
  • Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)
  • User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
  • OBD-II Output; CAN based compatible with 2008 or newer vehicles
  • Patented X-Digital wideband technology (Patent 9,575,030)
  • Compatible with vehicle/system voltages up to 16V
  • 52mm gauge diameter and slim 0.825" gauge depth
  • Includes Bosch 4.9LSU wideband UEGO sensor
  • Can display AFR values in hundredths of %
  • Gauge cup depth only .200" deep
  • Auto dimming feature
  • Locking connectors

Accurate AFR data is critical when tuning an engine. Running rich (very low air/fuel ratio, excessive fuel) can cause a loss in power, while running too lean (very high air/fuel ratio, not enough fuel) may result in serious engine damage. Using a wideband air/fuel controller during the tuning process allows you to monitor AFR and adjust tuning parameters to optimize them for maximum power and efficiency. AEM has a comprehensive line of highly accurate, reliable wideband air/fuel controllers that can help ensure your vehicle is optimally tuned.

Installation Instructions
  • X-Series Wideband UEGO AFR Controllers Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
  • 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
  • Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
  • Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)
  • User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
  • OBD-II Output; CAN based compatible with 2008 or newer vehicles
  • Patented X-Digital wideband technology (Patent 9,575,030)
  • Compatible with vehicle/system voltages up to 16V
  • 52mm gauge diameter and slim 0.825" gauge depth
  • Includes Bosch 4.9LSU wideband UEGO sensor
  • Can display AFR values in hundredths of %
  • Gauge cup depth only .200" deep
  • Auto dimming feature
  • Locking connectors
