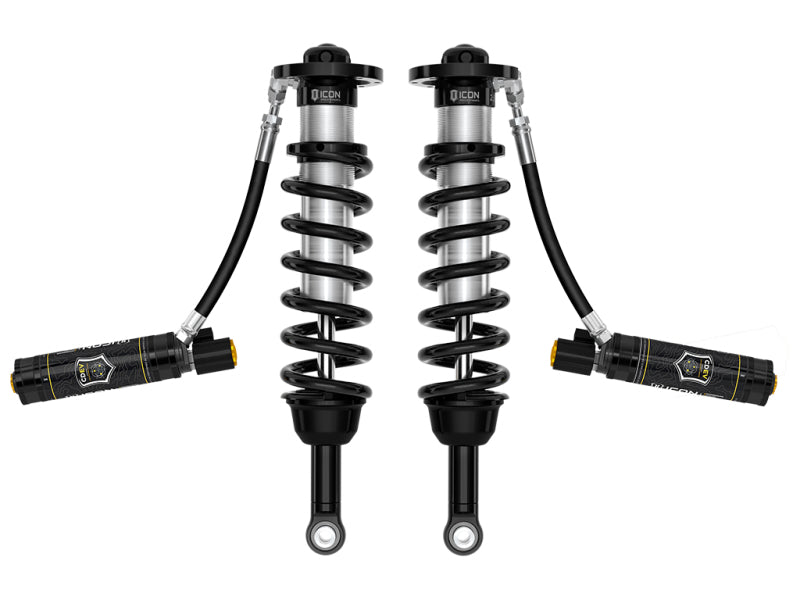

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are an incredible upgrade for the front end of the 2022-2024 Toyota Tundra and 2023-2024 Toyota Sequoia. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability on Tundra or 3-4.5" of front lift on Sequoia, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 or 3.0 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2023-2024	Toyota	Sequoia	Capstone
2023-2024	Toyota	Sequoia	Limited
2023-2024	Toyota	Sequoia	Platinum
2023-2024	Toyota	Sequoia	SR5
2023-2024	Toyota	Sequoia	TRD Pro
2022-2024	Toyota	Tundra	1794 Edition
2022-2024	Toyota	Tundra	Capstone
2022-2024	Toyota	Tundra	Limited
2022-2024	Toyota	Tundra	Platinum
2022-2024	Toyota	Tundra	SR
2022-2024	Toyota	Tundra	SR5
2022-2024	Toyota	Tundra	TRD Pro
