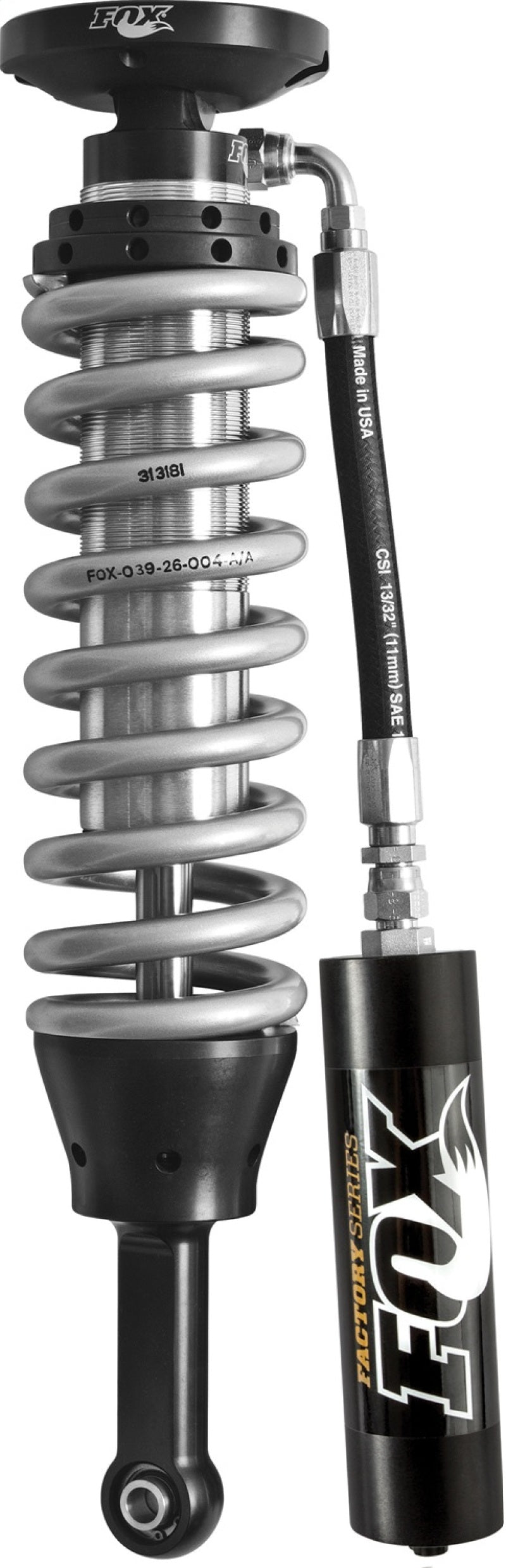

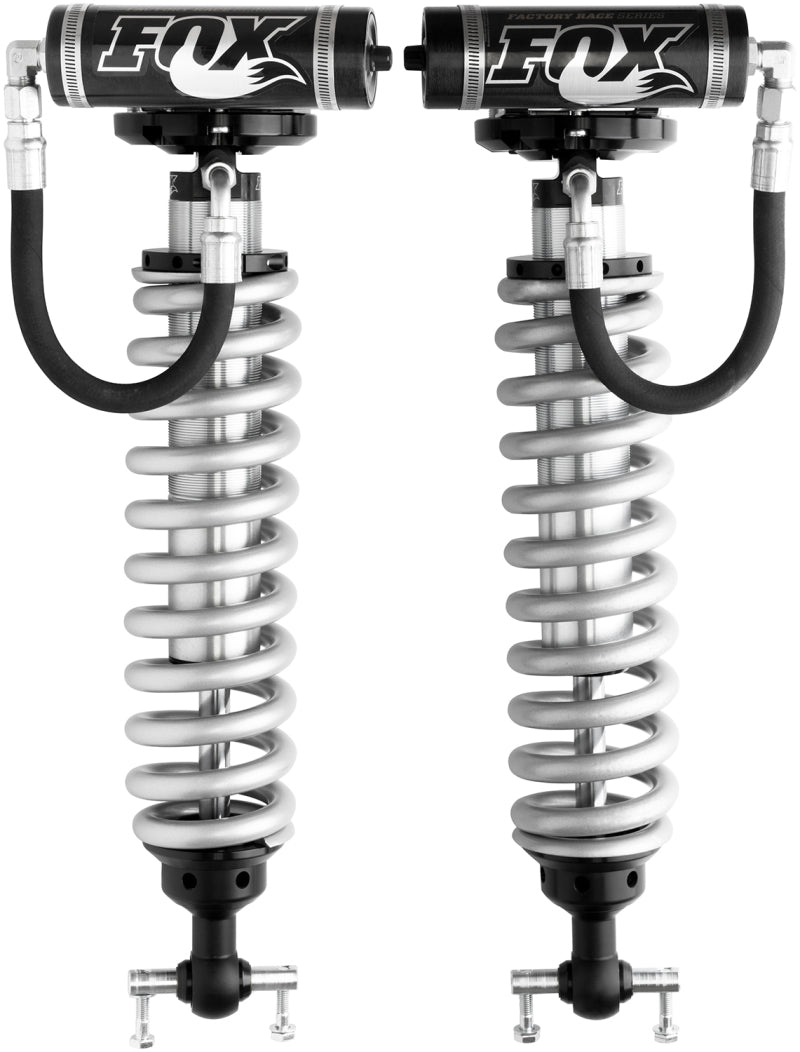

Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can.Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed.Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Technical Bulletin
Installation Instructions
Technical Drawing


This Part Fits:

Year	Make	Model	Submodel
2014	Ford	F-150	FX4
2014-2020	Ford	F-150	King Ranch
2014-2020	Ford	F-150	Lariat
2014,2016-2020	Ford	F-150	Limited
2014-2020	Ford	F-150	Platinum
2018-2020	Ford	F-150	Police Responder
2017-2020	Ford	F-150	Raptor
2016-2020	Ford	F-150	SSV
2014	Ford	F-150	STX
2014	Ford	F-150	SVT Raptor
2014-2020	Ford	F-150	XL
2014-2020	Ford	F-150	XLT
