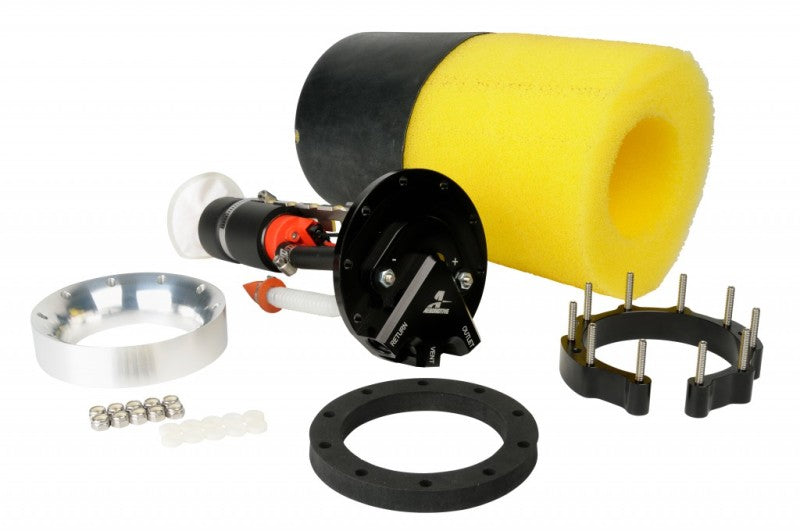

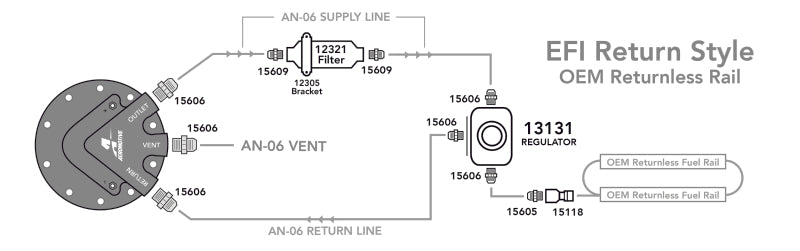

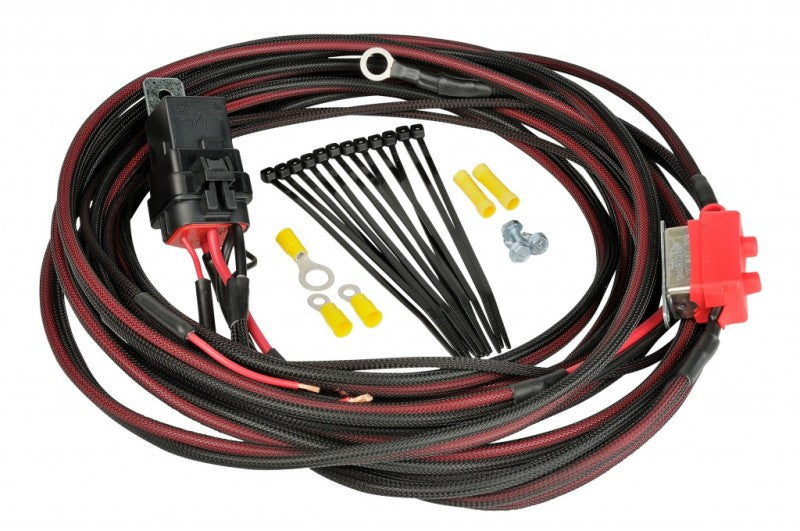

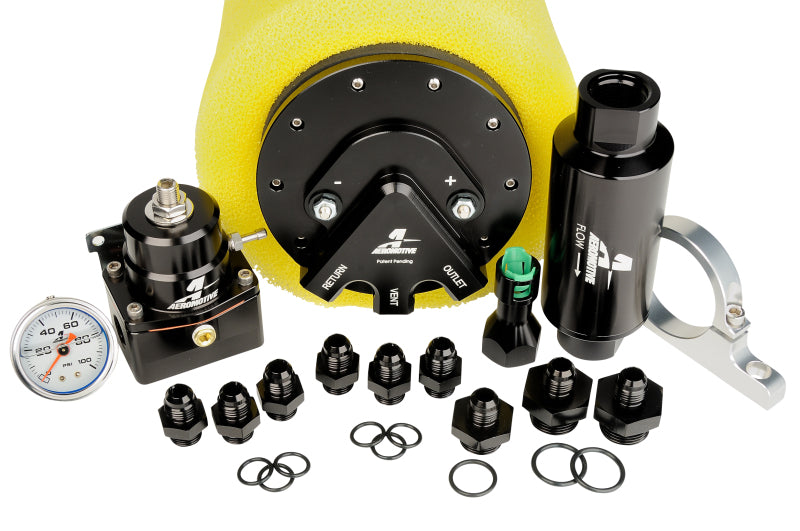

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with OEM ?return-less? style fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 200 LPH fuel pump.? Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, 3/8? Quick-Connect fuel rail adapter, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for late model engine transplants so hot with Street Rodders around the world.? Suitable for naturally aspirated and blown, EFI engines producing from 300- 700 plus flywheel Horse Power, on the street or at the track.?AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18689 Phantom 200, 1ea p/n 12321 10-micron Filter Assembly, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN 10 ORB to AN-06 flare, 1ea p/n 15633 0-100 psi Gauge, 1ea p/n 15672 Y-Block, AN-06.
