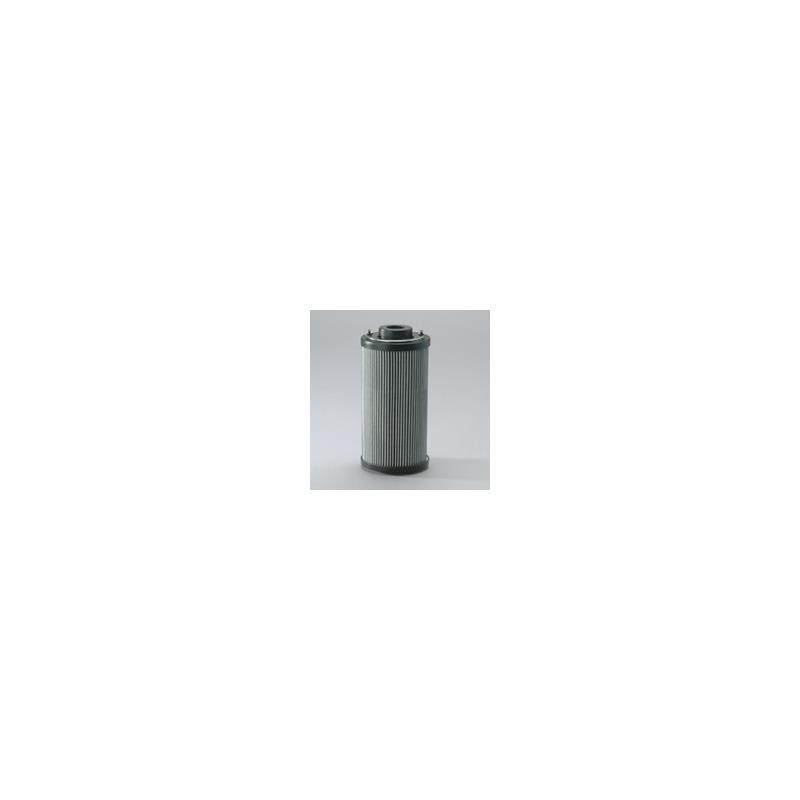

The Donaldson P566983 Hydraulic Filter is designed to protect your pump and hydraulic systems even during the most demanding operations. Built for high performance, this filter delivers reliable system efficiency while ensuring peak protection under heavy-duty conditions.

Features & Benefits

• Proven pump protection with improved system efficiency for smooth operation
• Genuine, OEM-approved quality and warranty support for peace of mind
• High-efficiency synthetic media engineered for optimal filtration performance
• Bypass valve operation set at 3.45 bar (50 psi) for controlled flow
• Built for durability in challenging, heavy-duty applications

Technical Specifications

• Outer Diameter: 94.5 mm (3.72 inches)
• Inner Diameter: 48.3 mm (1.9 inches)
• Length: Approximately 194.7 mm (7.67 inches)
• Gasket ID: 47.22 mm (1.86 inches)
• Efficiency Beta 1000: 12 microns
• Bypass Valve: Yes, set at 3.45 bar (50 psi)
• Media Details: DT High-Performance synthetic media

Cross References / Compatibility

• DONALDSON DT0330R14UM
• FILTREC RHR330G10V
• FLEETGUARD HF28658
• FLEETGUARD ST1265

Experience quality and authenticity. Made in the USA, this hydraulic filter demonstrates Everything Truck Parts’ commitment to fast shipping and genuine parts. Place your order today and check out our Hydraulic Filters collection for more high-performance solutions.
