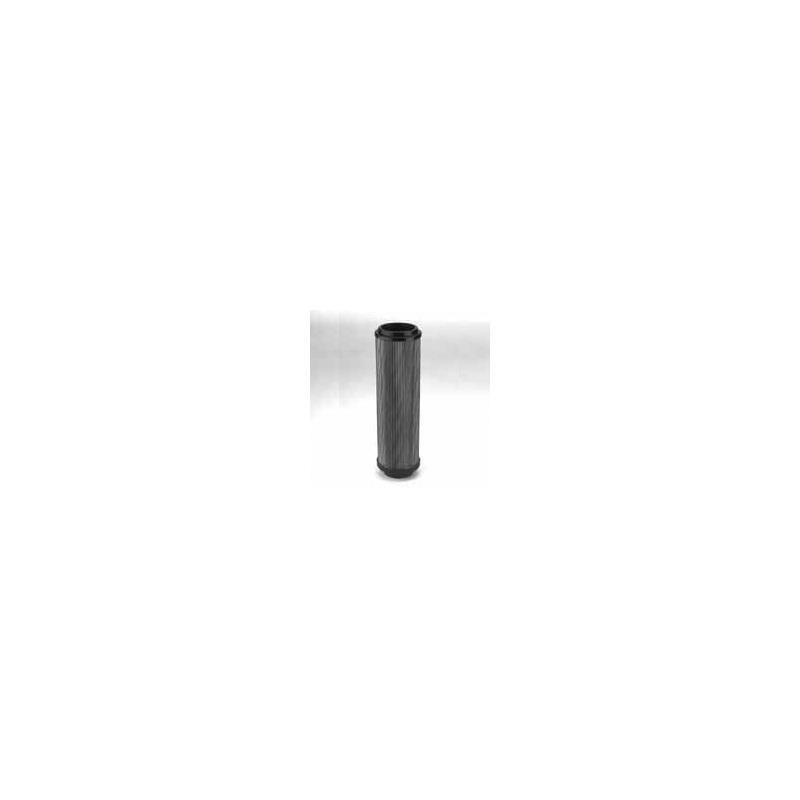

The Donaldson P566966 Hydraulic Filter is designed to safeguard high-pressure hydraulic systems with advanced synthetic depth filtration. Built for demanding applications, this high-performance hydraulic filter cartridge delivers excellent particle removal, ensuring a longer system lifespan and minimizing unexpected downtime.

Technical Details

• Filter Efficiency: 8 microns at Beta 1000
• Filter Media: Advanced synthetic media
• Dimensions: Overall Length - 101.6 mm (4 in), Outer Diameter - 63.5 mm (2.5 in), Inner Diameter - 38.1 mm (1.5 in)
• Bypass Valve: Set at 3 bar/44 psi
• Filtration Direction: Outside-in design

Key Benefits

• Reduces maintenance downtime and extends component life
• Ideal for high-pressure hydraulic systems in trucks and heavy-duty equipment
• Easy installation and reliable performance under rigorous conditions

Every part is guaranteed to be genuine and brand new, with no minimum order requirements. Items typically ship within one business day, so you'll have the parts you need when you need them. For more hydraulic filter options, visit our Hydraulic Filters collection, or browse additional Donaldson parts in our Donaldson range.
