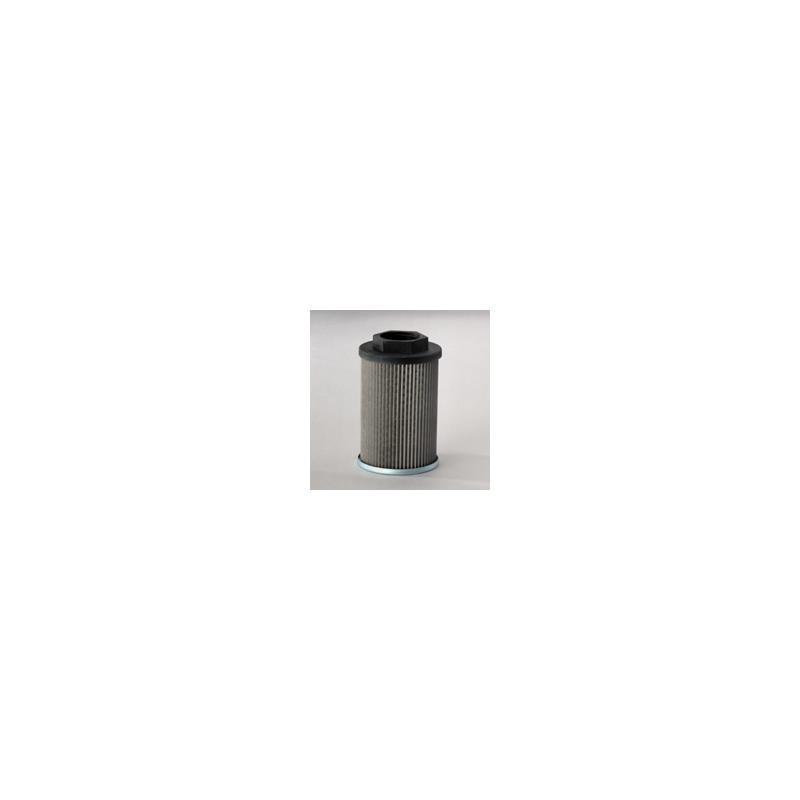

Enhance your hydraulic system with the genuine Donaldson P562229 Hydraulic Filter & Strainer. Designed to guard against larger contaminants, this essential component provides coarse filtration that prolongs the life of downstream filters and keeps your system clean. Built for low-pressure applications and easy installation, it offers a cost-effective solution for maintaining optimal hydraulic performance.

Key Specifications

• Outer Diameter: 3.40 inch (86.36 mm)
• Inner Diameter: 2.00 inch (50.8 mm)
• Thread Size: 1 1/4 NPT
• Length: 5.10 inch (129.54 mm)
• Efficiency Beta 2: 149 microns
• Bypass Valve: Yes; Bypass Valve Setting LR: 3 psi (0.2 bar)
• Media Type: Wire Mesh

Every technical feature works together to ensure peak system efficiency; for example, the bypass valve helps maintain pressure during clogging events. With superior construction and precise engineering, this hydraulic filter not only reduces maintenance costs but also enhances the overall reliability of your equipment.

Discover more in our Hydraulic Filters collection and experience the trusted performance of genuine Donaldson parts.
